XP Power AQM450 Convection-Cooled Adapters

XP Power AQM450 Convection-Cooled Adapters offer 450W of convection-cooled power, high efficiency, high power density, and a 50% size reduction compared to traditional designs. AQM450 adapters feature a fully sealed enclosure with IP22 compliance, worldwide medical and industrial safety approvals, and a smooth surface finish, allowing easy cleaning in clinical environments. These adapters provide Class B conducted and radiated emissions, 2xMOPP isolation, and low leakage current. XP Power AQM450 Convection-Cooled Adapters are suitable for various medical applications, including patient monitoring, imaging, hospital equipment, and industrial applications, such as process control and test and measurement.

Features

  • GaN-based compact design
  • Low earth leakage current
  • Medical and ITE safety agency approvals
  • Class B conducted and radiated emissions

Applications

  • Diagnostic and monitoring
  • Imaging
  • Patient treatment
  • Dentistry
  • Home healthcare
  • Robotics
  • Test and measurement
  • Process control

Specifications

  • 12VDC to 56VDC regulated single outputs
  • 90VAC to 264VAC universal, single-phase input
  • IP22 environmental rating
  • Up to 94% efficiency
  • <0.5W standby power
  • 0°C to +60°C operating temperature range
  • 254mm x 116mm x 47mm dimensions

Mechanical Details

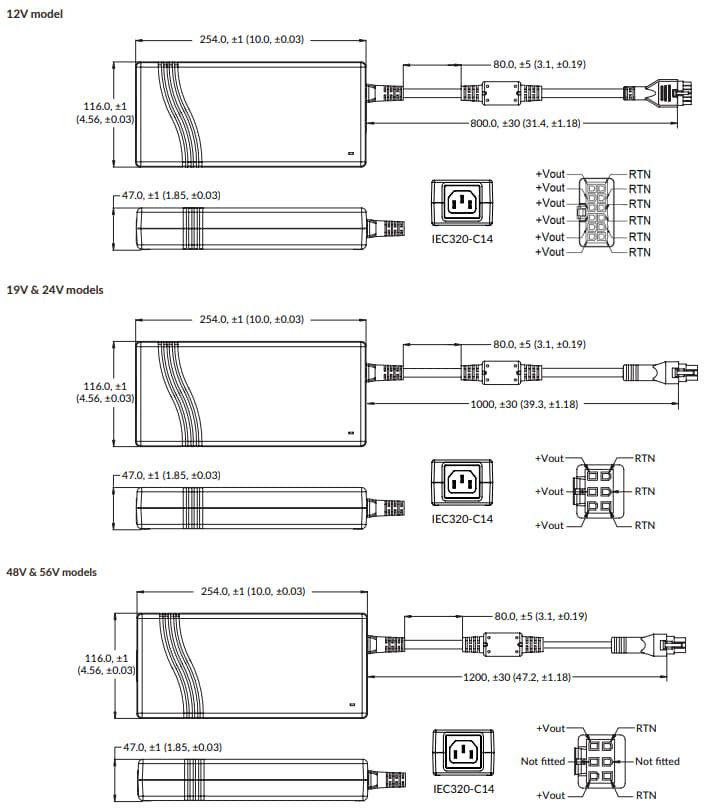

Mechanical Drawing - XP Power AQM450 Convection-Cooled Adapters
View Results ( 3 ) Page
Teilnummer Datenblatt Ausgangsspannung (Kanal 1) Ausgangsstrom (Kanal 1) Effizienz
AQM450PS19 AQM450PS19 Datenblatt 19 VDC 23.6 A 92 %
AQM450PS24 AQM450PS24 Datenblatt 24 VDC 18.75 A 93 %
AQM450PS48 AQM450PS48 Datenblatt 48 VDC 9.38 A 94 %
Veröffentlichungsdatum: 2025-01-02 | Aktualisiert: 2025-03-31
