Pomona Electronics 73101 Panel Mount Double 4mm Banana Jack

Pomona Electronics 73101 Panel Mount Double 4mm Banana Jack features a convenient one-piece rigid design ideal for screw-mounting onto pre-drilled panels. This double banana jack is made of machined brass and includes hex nuts and a washer. Pomona Electronics 73101 banana jack offers a 30VAC/60VDC voltage rating and 25A current rating. This banana jack also provides solder turrets for solder connections.

Features

  • Convenient one-piece rigid design
  • Insulated 4mm double banana jack
  • Ideal for screw-mounting onto pre-drilled panels
  • Solder turrets for solder connections
  • Machined brass
  • Includes double banana jack, hex nuts, and washer
  • 30VAC/60VDC voltage rating
  • 25A current rating

Dimensions

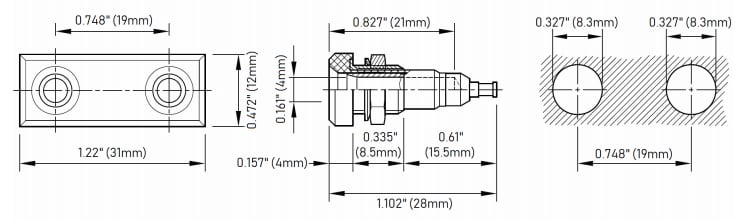

Mechanical Drawing - Pomona Electronics 73101 Panel Mount Double 4mm Banana Jack
Veröffentlichungsdatum: 2019-12-03 | Aktualisiert: 2023-11-07
