Monolithic Power Systems (MPS) MP6539B 100V 3-Phase BLDC Motor Pre-Drivers
Monolithic Power Systems (MPS) MP6539B 100V 3-Phase BLDC Motor Pre-Drivers can drive three half-bridges of six N-channel power MOSFETs up to 100V. The MP6539B uses a bootstrap capacitor to generate a supply voltage for the high-side MOSFET driver. An internal charge pump maintains the high-side gate drive if the output is high for an extended time. Internal safety features include shoot-through protection, adjustable dead-time control, under-voltage lockout (UVLO), and thermal shutdown. The MP6539B is available in TSSOP-28 (9.7mm x 6.4mm) and QFN-28 (4mm x 5mm) packages with an exposed thermal pad.
Features
- Supports 100V operation
- 120V VBST maximum voltage
- Integrated current-sense amplifier
- Low-power sleep mode for battery-powered applications
- Adjustable dead-time control to prevent shoot-through
- Thermal shutdown and Under-Voltage Lockout (UVLO) protection
- Fault indication output
- Available in thermally enhanced, surface-mounted TSSOP and QFN packages
Applications
- Three-phase brushless DC motors
- Permanent magnet synchronous motors
- Power drills
- E-Bikes
Specifications
- 8.5V to 14V gate driver supply voltage
- 1A output current
- 1.1mA operating supply current
- 0.8V to 2V input logic threshold range
- ±14µA input logic current
- 0.8A maximum source current (typical)
- 1A maximum sink current (typical)
- Continuous power dissipation
- 3.1W for QFN-28 (4mm x 5mm)
- 3.9W for TSSOP-28 EP (9.7mm x 6.4mm)
- -40°C to +125°C operating temperature range
- +150°C typical thermal shutdown

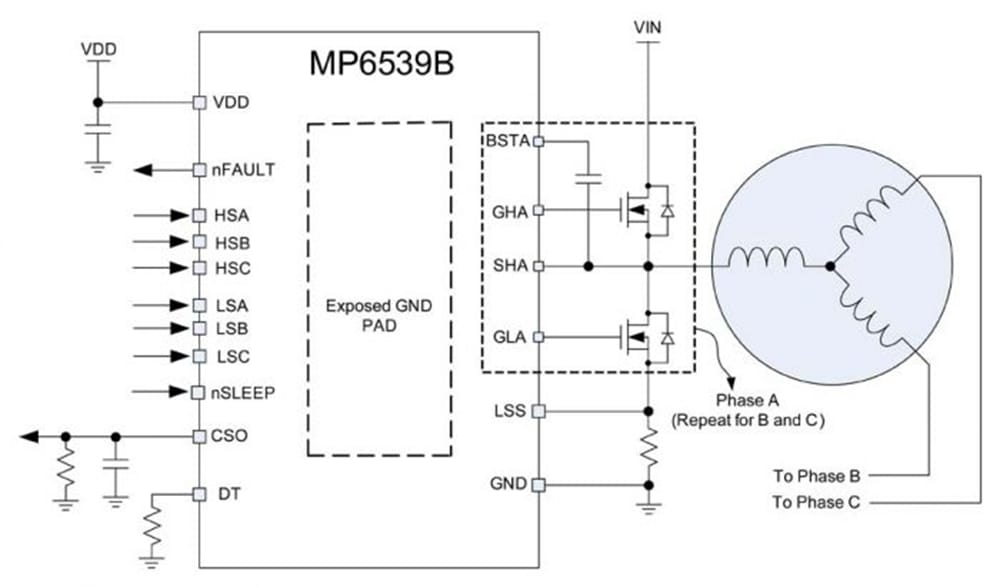

Typical Application
