MEAN WELL HLG-40/60/320H LED Power Supplies

MEAN WELL HLG-40/60/320H LED Power Supplies are been expanded to include 40W, 60W, and 320W models. The HLG-40/60/320H single output LED switching power supplies features universal AC input up to 305VAC, cooling by free air convection, and built-in active PFC function. MEAN WELL HLG-40/60/320H power supplies are IP67/IP65 designed for indoor or outdoor installations for LED lighting and moving sign applications. The LEDs are ideal for street lighting, high-bay lighting, parking space lighting, and fishing lamp.

Features

  • Universal AC input/Full range (up to 305VAC)
  • Built-in active PFC function
  • High efficiency up to 95%
  • Protections:
    • Short circuit
    • Overcurrent
    • Overvoltage
    • Over temperature
  • Cooling by free air convection
  • OCP point adjustable through output cable or internal potentiometer
  • IP67/IP65 design for indoor or outdoor installations
  • Three in one dimming function (1VDC to 10VDC or PWM signal or resistance)

Applications

  • Suitable for LED lighting
  • Street lighting applications
  • Compliance with worldwide safety regulations for lighting
  • Suitable for:
    • Dry
    • Damp
    • Wet location

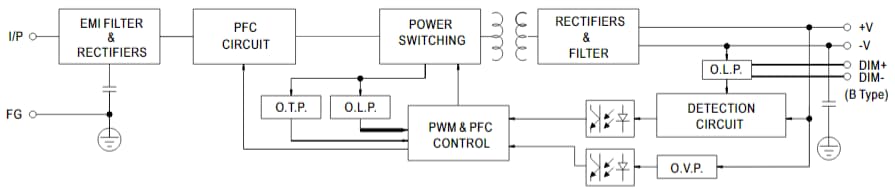

HLG-40H and HLG-60H Block Diagram

Block Diagram - MEAN WELL HLG-40/60/320H LED Power Supplies

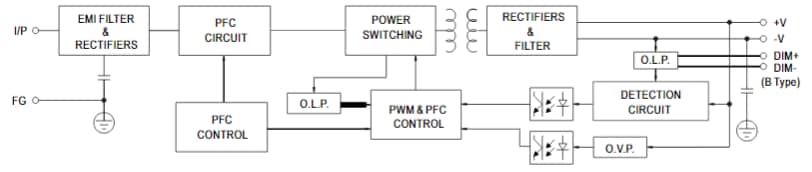

HLG-320H Block Diagram

Block Diagram - MEAN WELL HLG-40/60/320H LED Power Supplies

Datasheets

Learn More

MEAN WELL HLG(C) Universal Input High Performance LED Driver

Universal AC input up to 305VAC, protections for short circuit, overload, and over temperature.

Learn Moreüber MEAN WELL HLG(C) Universal Input High Performance LED Driver View Productsverwandt mit MEAN WELL HLG(C) Universal Input High Performance LED Driver
Veröffentlichungsdatum: 2012-05-17 | Aktualisiert: 2022-03-11
