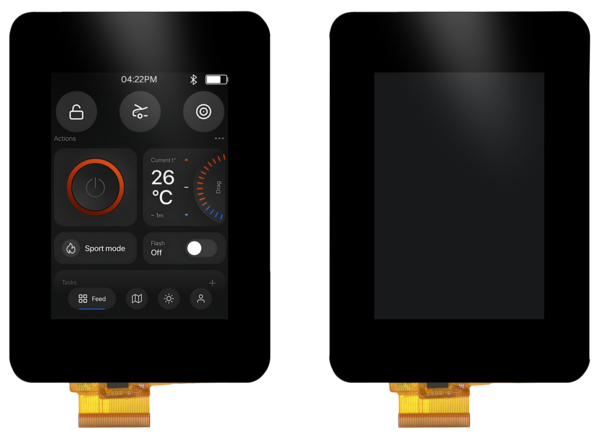

4D LCD 3.5" TFT LCD Modules

4D LCD 3.5" TFT LCD Modules are color active matrix LCD modules integrating an amorphous silicon thin-film transistor. These LCD modules include a color TFT-LCD panel, driver IC, FPC, and a backlight unit. Options available include with or without a Resistive/Capacitive Touch Panel (RTP or CTP) and with or without Cover Lens Bezel (CLB). The 3.5" LCD modules' display area contains 320 x 480 pixels. These LCD modules are RoHS compliant and operate within the -20°C to 70°C temperature range.

Features

TFT / Transmissive / IPS LCD type
3.5" size
Available with/without Resistive/Capacitive Touch Panels (RTP or CTP) and with/without Cover Lens Bezel (CLB)
48.96mm × 73.44mm active area (WxH)
0.2025mm × 0.2025mm dot pitch (WxH)
320 x 480 display resolution pixels
MCU-16bit/SPI interface type
Surface luminance:
- 4DLCD-35-320-480-NT: 350cd/m² (typical)
- 4DLCD-35-320-480-CT: 315cd/m² (typical)
- 4DLCD-35-320-480-CT-CLB: 315cd/m² (typical)

262K color depth
ILI9488 driver IC
6 LEDs backlight type
RGB vertical stripe pixel arrangement
AG surface treatment
2.8V (typical) input voltage
Module size - W x H x T

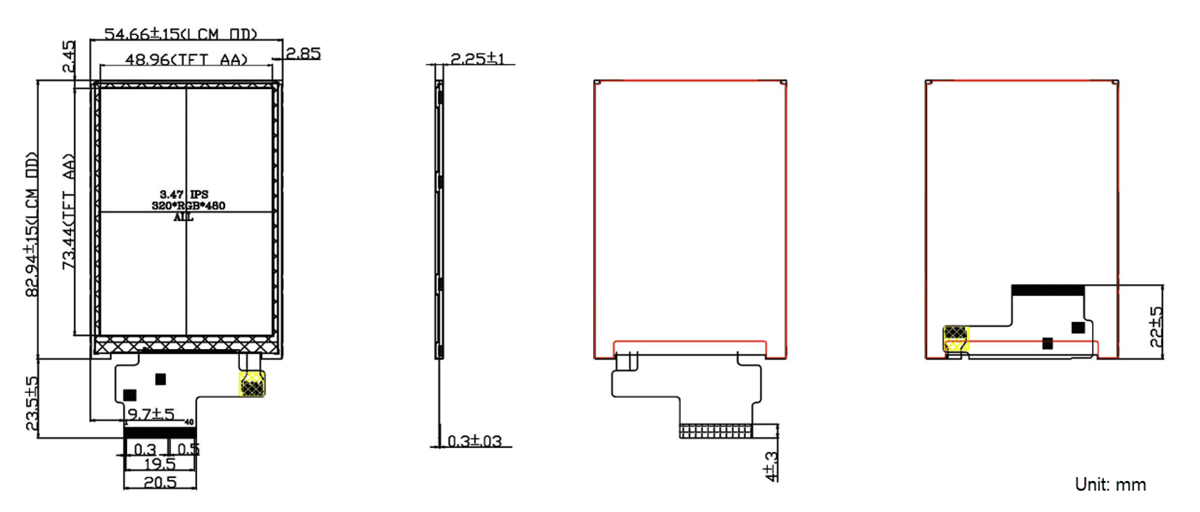

- 4DLCD-35-320-480-NT: 54.66mm x 82.94mm x 2.28mm

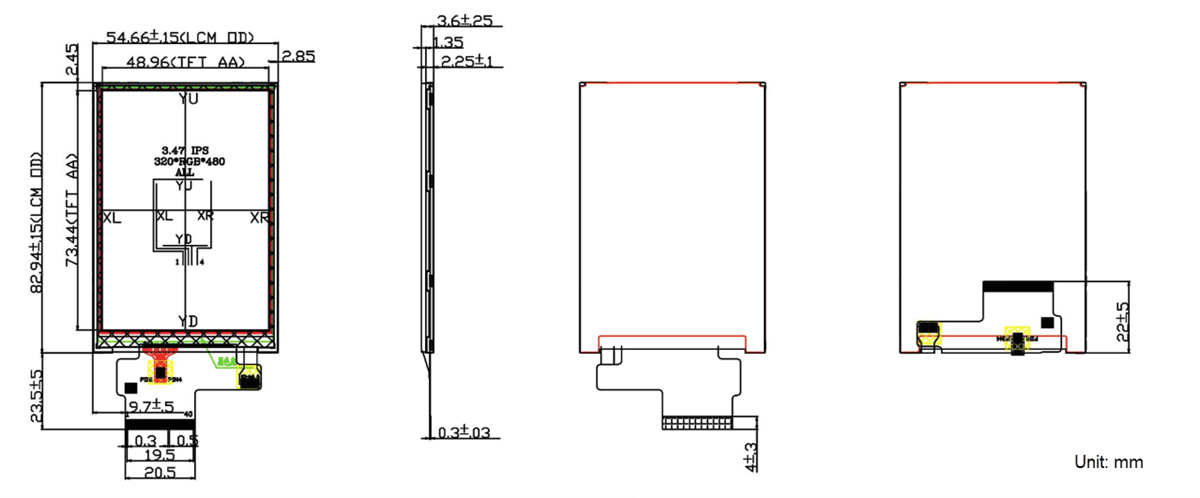

- 4DLCD-35-320-480-RT: 54.66mm x 82.94mm x3.6mm

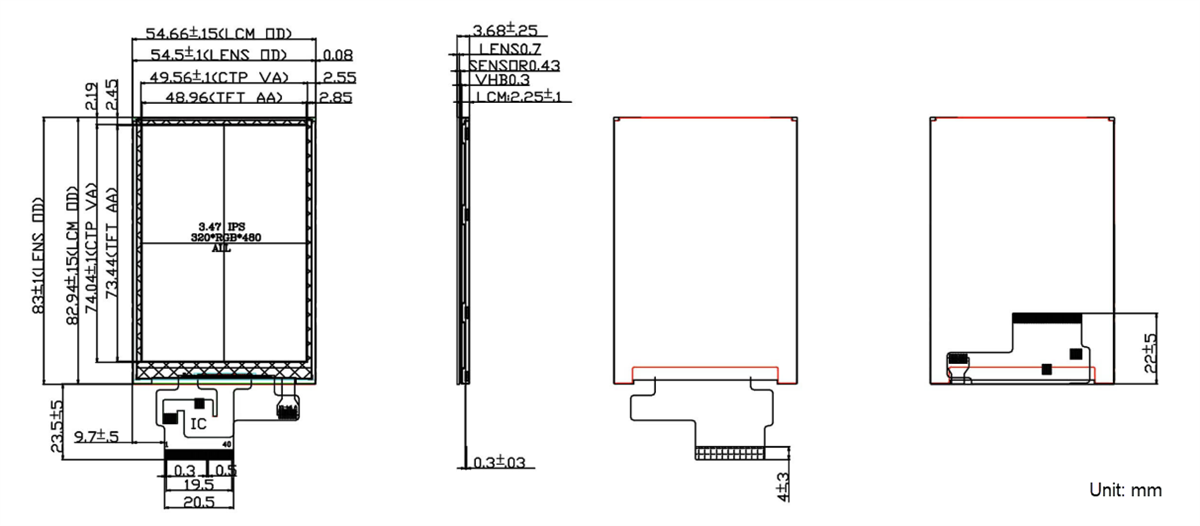

- 4DLCD-35-320-480-CT: 54.66mm x 83.00mm x 3.68mm

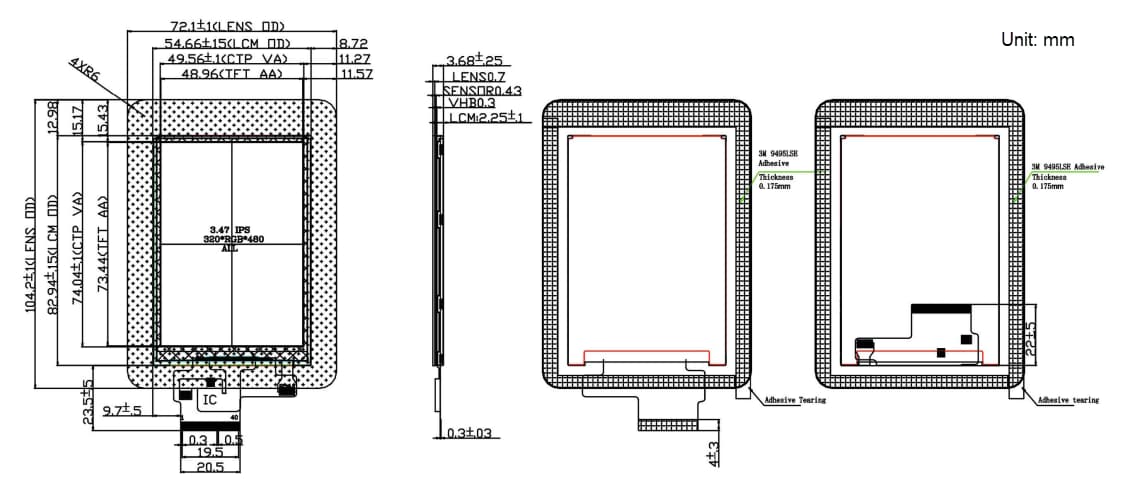

- 4DLCD-35-320-480-CT-CLB: 72.10mm x 104.20mm x 3.68mm (including CLB)
-20°C to 70°C operating temperature range
RoHS compliant
