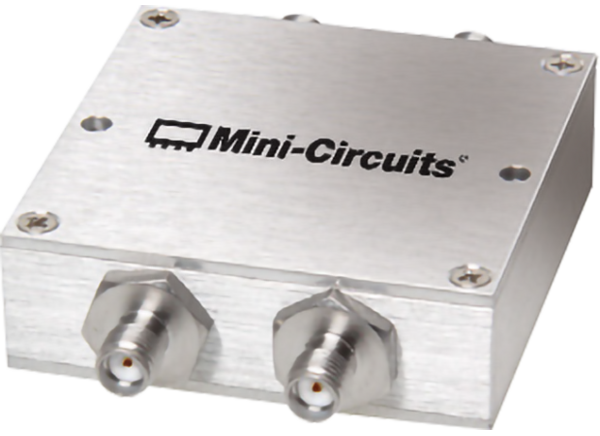

Mini-Circuits Z4BT-2R15GW+ Coaxial Bias-Tee/Diplexer

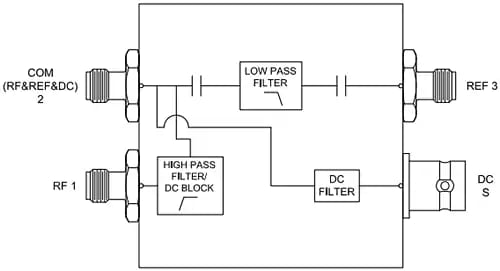

Mini-Circuits Z4BT-2R15GW+ Coaxial Bias-Tee/Diplexer is a combination of a bias-tee and diplexer that supports L-B and communications applications. This module joins together wide-band, flat response bias-tee performance with additional functionality to inject a 100MHz reference clock in a single compact design. The rugged shielded case is equipped with SMA BNC female connectors for all of the ports. Mini-Circuits Z4BT-2R15GW+ Coaxial Bias-Tee/Diplexer offers low insertion loss of 0.5dB, good isolation of 50dB, and 2A, 48V DC pass-through. The Z4BT-2R15GW+ is ideal for satellite communication installations and for powering satellite-up converters and LNBs where IF, DC, and the 100MHz clock reference are all injected on a single coax cable.
