Amphenol RF Serie di connettori MMCX Amphenol RF
La serie MMCX (MicroMate™) Amphenol RF è una delle linee di connettori RF di Amphenol più piccoli ed è una serie di connettori micro-miniaturizzati con un meccanismo di innesto a scatto che consente una rotazione di 360 gradi, caratteristica che permette flessibilità nei layout delle PCB. I connettori MMCX sono conformi alle specifiche europee CECC 22000. Il sistema di interconnessione a 6 GHz 50 Ω è disponibile in connettori per montaggio superficiale, per bordo scheda e per cavi.
Amphenol RF's cable assembly expansion includes the MMCX and MCX ultraminiature series that are designed on a flexible 1.13mm micro-coax cable. The MCX series features a robust mechanical design ideal for more rugged applications with space constraints, such as drones and consumer devices. The smaller MMCX to AMC or AMC4 cable assemblies are used to make connections between PCBs and modules in tight spaces in IoT infrastructures.
Merkmale
- Broadband performance with low reflection DC to 6 GHz, offering a cost-effective, high-quality solution
- Quick connect/disconnect snap-on mating to reduce installation time
- Conforms to European CECC 22000 specifications

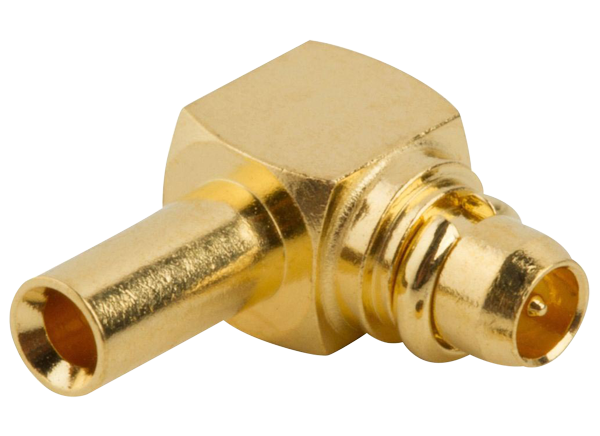

- Available in straight and right-angle plugs and PCB connectors
Applikationen
- Antennas
- Cable assemblies
- Instrumentation
- Satcom
- Base stations
- Components
- Handheld devices
- Wireless modules
- External antenna connections
- PCMCIA cards
- Telecom
- Broadband communications
- GPS
- Radio boards
